WING FLYING (Motor & Engine & Propeller test stand )
manufacturer

WF CO 30 KGF Coaxial Thrust Stand

0 reviews

Price: $10,000

Key Features

Suggested Propulsion System Max Thrust?3 kg
Max Thrust 30 kg
Max Propeller 40 inch
Torque N.M
RPM 30 to 15000 RPM

Short Description

WF-CO-30KGF Coaxial Thrust Stand is a face-to-face drone thrust test stand. It allows the testing of two coaxial motors and propellers simultaneously, which is capable of testing single motor and propeller as well with coaxial motor.

Description

About Us

Founded in 2017, WingFlying is commited to supplying precise and easy-opertional drone propulsion testing tools and technical support for drone companies, university labs, UAV education, and drone communities. Our goal is to help them design the most efficient and reliable drones.

WingFlying is specializing in drone motor and propeller test, engine test, wind tunnels test. We have developed and offered more than 10 different test equipment for customers to optimize their propulsion system.

Our Business

Motor and Propeller Test Stand

LY-10KGF, LY-30KGF,LY-70KGF and WF-CO-30 Coaxial Thrust Test Stand. We also custom drone test stand with max thrust 500KG, max current 650A and max voltage 650V.

Drone Engine Test

WingFlying started developing engine test equipment in 2018. We have designed 13 test plots for customers. Our engine test equipment have run over 1000 hours safely.

Custom Testing Equipment

We have developed wind tunnels test, propulsion test and big thrust test service for thousands of customers. Contact us to customize your test tools.

Marker Education

Our WF-EDU-01 and WF-EDU-02 test equipment are specially designed for drone Labs, Vacational schools and college to  guide students the process of testing the motors and propellers.

Our Vision

Be the leader in professional and safe drone propulsion system test. Optimize your propulsion system with our precise and professional testing equipment.

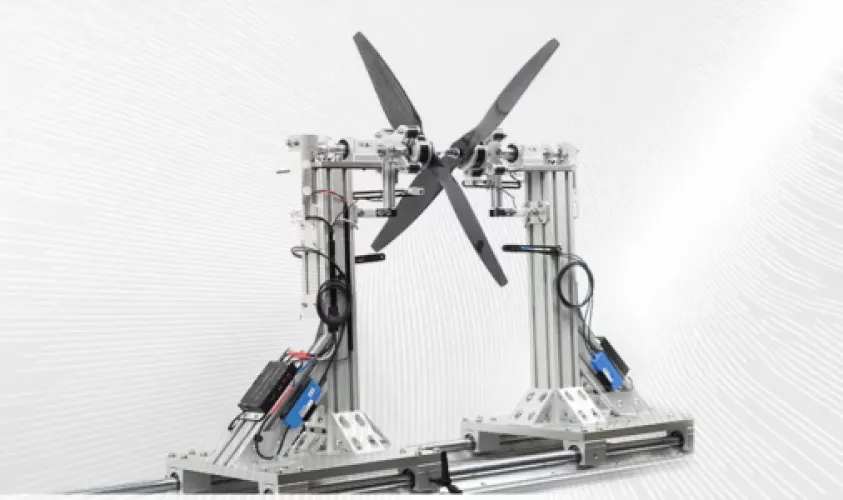

WF-CO-30KGF Coaxial Thrust Stand

WF-CO-30KGF Coaxial Thrust Stand is a face-to-face drone thrust test stand. It allows the testing of two coaxial motors and propellers simultaneously, which is capable of testing single motor and propeller as well with coaxial motor.

Each test bench can measure max 30kgf of thrust and max 40 inch propeller. The distance between the propellers can be adjustable with the sliders.

Specification of Coaxial Thrust Stand

Suggested Propulsion System    Max thrust>3kg
Max Thrust 30KG
Max Propeller 40Inch
Torque 20 N•M
Current 0-150A
Voltage 5-65V
RPM 30-15000 RPM

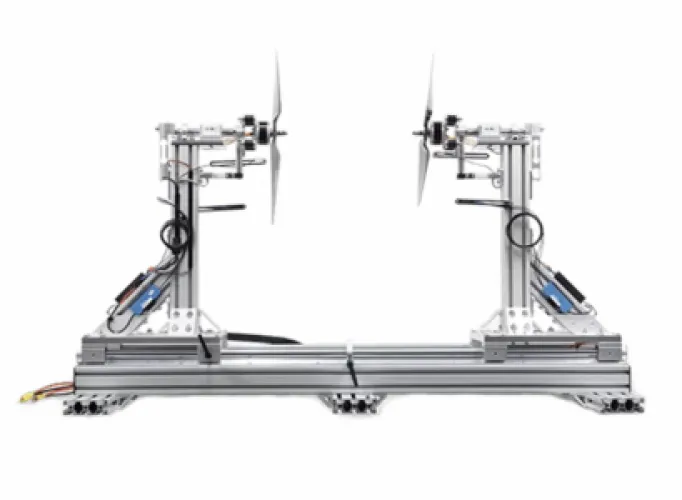

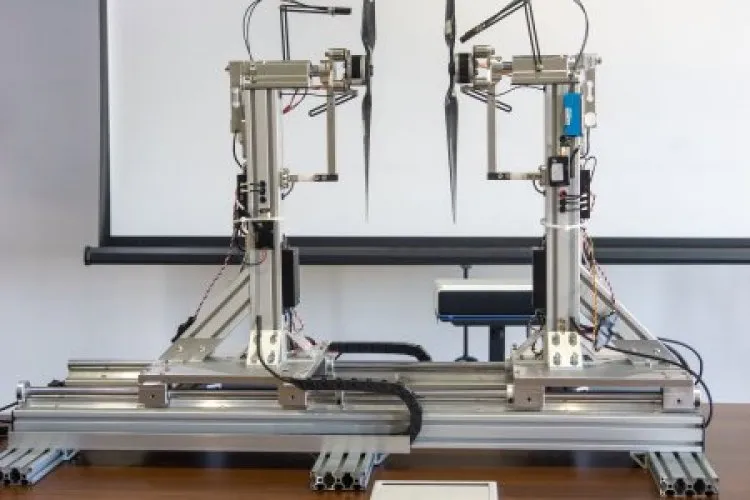

Flexible Sliders Adjust the Distance & Optimize the Test

  • Test two motors and propellers simultaneously.

  • Capable of testing single motor and propeller as well with coaxial motor.

  • Axial distance can be adjusted with sliders.

  • Each stand can test up to 30kgf of thrust.

D-MET Software for Coaxial Thurst Test

D-MET software allows you to monitor the real-time data of two motors and propellers simultaneously, which includes the efficiency of thrust, torque, voltage, current, RPM, and propeller. With the support of D-MET software, the test efficiency and result accurancy will be definitely much improved.

D-MET Software for Coaxial Thrust Test

D-MET Software for Coaxial Thrust Test will show all the relavant data on the line chart, and the tester can see and contrast the data from different dimensions, which makes the test work much easier and the improved details visibler.

A UAV Coaxial Thrust Stand, is a specialized tool used for testing the thrust performance of multi-rotor drones. It is designed to measure the thrust produced by each rotor individually, allowing developers to analyze the performance of each motor and propeller combination. The thrust stand consists of a frame, a load cell, and a motor controller. The drone is mounted on the frame, and the load cell measures the thrust produced by each rotor.

The Benefits of Using a UAV Coaxial Thrust Stand

There are several benefits of using a UAV coaxial thrust stand in drone testing and development. Firstly, it provides accurate and reliable data on the performance of each motor and propeller combination, enabling developers to optimize the drone's design for maximum efficiency and performance. This information is critical for both commercial and military applications, where drones are often required to operate under challenging conditions.

Secondly, a UAV coaxial thrust stand allows developers to identify any issues with the drone's propulsion system. This is especially important for multi-rotor drones, which rely on all rotors working together to maintain stability and maneuverability. By measuring the thrust produced by each rotor, developers can quickly identify any imbalances or faults in the propulsion system and rectify them before the drone is put into service.

Finally, a UAV coaxial thrust stand provides a safe and controlled environment for drone testing. Drones are complex machines that can be dangerous if not handled properly. By using a UAV coaxial thrust stand, developers can test the drone's performance and make adjustments without putting themselves or others at risk.

Applications of a UAV Coaxial Thrust Stand

The applications of a UAV coaxial thrust stand are vast and varied. In the military sector, it is used to test and develop drones for surveillance, reconnaissance, and combat missions. The data collected from the thrust stand helps to optimize the drone's performance, reduce its radar signature, and increase its range and endurance.

In the commercial sector, a UAV coaxial thrust stand is used to test and develop drones for various applications, such as aerial photography, surveying, and delivery. The data collected from the thrust stand helps to optimize the drone's payload capacity, range, and flight time, ensuring that it can perform its tasks efficiently and safely.




Specifications

  • Manufacturer
  • China, France, Germany, India, United Kingdom
  • -20 to +60 ℃
  • 12V 2A DC5521
  • ≦80 % (No condensation)
  • >2.5 kg thrust (Exclude racing drone propulsion)
  • Max Thrust 5-20 kg
  • Max Thrust 30 kg
  • 40 inch
  • 30 kgf
  • 1 gf
  • 0.1% + 0.1% FS
  • 20 N•M
  • 0.001 N•M
  • 0.15%+0.15%FS
  • 0 to 90,000 RPM
  • 30 RPM
  • ±30 RPM
  • -70 to +350 ℃
  • 0.1 ℃
  • -40 to +125 ℃
  • ±0.5 ℃
  • 50 to 120 kpa
  • 0.01 kpa
  • ±0.4 kpa
  • 0 to 100 %RH
  • 1% RH
  • ±3 %
  • 2400 MHz
  • 20 dBm
  • 2000 m
  • 0.05% + 0.05% FS
  • 5 to 65 V
  • 0 to 150 A
  • 0.01 A
  • 0.1% + 0.1% FS
  • 60 to 150000 RPM
  • 1 RPM
  • 45 kg
